06 · Tier 2 · General protection

Blue Protection Film

Blue adhesive PE film for temporary surface protection. Custom widths, lengths and adhesion levels for stainless steel, appliance panels and other compatible smooth surfaces.

Blue Protection FilmProduct & application image

Product & application images

See the material and its structure.

Blue Protection Film — Cyan-blue single layer and hand visibility · illustration
01Cyan-blue single layer and hand visibility · illustration

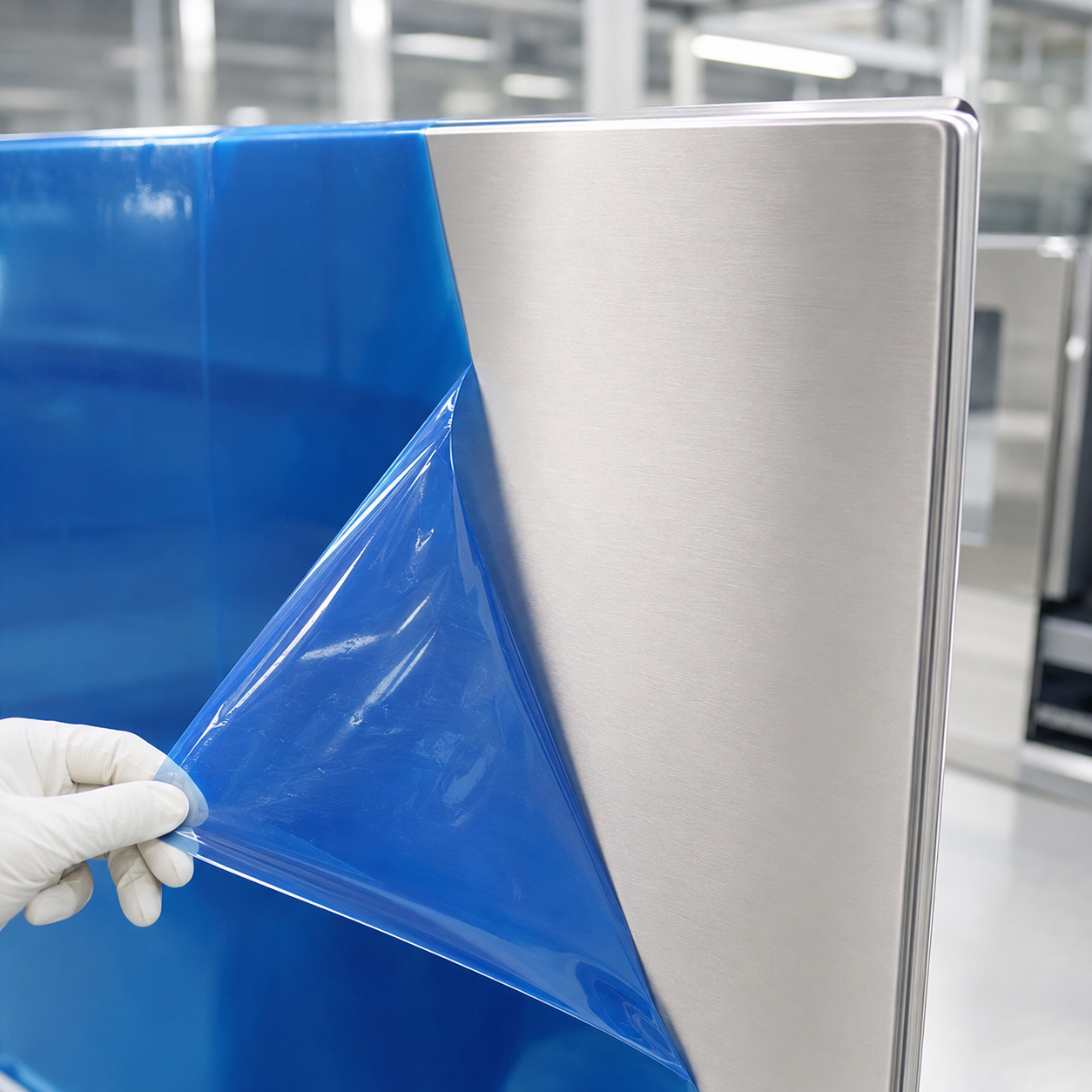

Blue Protection Film — Stainless-steel coverage and thin peeled edge · application illustration
02Stainless-steel coverage and thin peeled edge · application illustration

Blue PE film guide

Appearance: deep blue rolls, cyan single layer

Stacked layers give the roll a deep cobalt-blue colour with a slight violet cast. Unrolled film is cyan-blue and translucent. Fine winding lines and subtle irregular reflections are normal visual details of the reference material, rather than a fabric pattern.

These images were generated from the supplied photographs and approved for appearance. They illustrate the product, not measured transparency, adhesion or performance. Confirm the final colour and feel with a physical sample.

Blue PE film guide

Where to use it

Stainless-steel sheets and smooth metal panels: temporary coverage during storage, assembly and handling. Match adhesion separately to brushed, polished or coated finishes; remove grit before application.

Appliance panels and fabricated components: apply before handling or assembly where surface contact is expected. Glass, acrylic, painted and plastic surfaces require a separate compatibility trial; suitability is not assumed from their appearance.

This is an adhesive surface-protection film. It does not replace pallet stretch wrap, cushioning or impact protection. Confirm any cutting, forming, heating or outdoor exposure process before selection.

Blue PE film guide

Apply, inspect and remove

1. Clean and dry the surface; remove oil, dust and loose particles. Test a small piece using the intended grade and planned dwell time, checking both adhesion and removal.

2. Align one edge, feed the film without excessive stretching and press progressively from the centre outward with a clean, soft applicator. Avoid trapped particles, large bubbles and folds; inspect edges after application.

3. Remove before the agreed service period ends. Peel slowly and evenly with the film folded back close to the surface. If removal becomes difficult or the surface changes, stop and review conditions with TDH.

Blue PE film guide

Prepare a useful sample and quotation request

Send the substrate and finish, a surface photo or sample, required width × length, thickness, preferred adhesion or current sample, quantity and destination. Dimensions and adhesion are customisable; confirm the exact range and order terms with TDH.

Also state indoor or outdoor exposure, expected removal time and any processing or packaging requirements. If the grade is unknown, describe the task rather than guessing a number; a sample trial can guide selection. Free samples are available with freight paid by the customer.

Product framework

Built to fit your process.

Wound blue PE appears deeper in colour; a single layer is lighter and translucent, with a smooth, flexible surface. Images are product and application illustrations, not customer cases. Wide-sheet views illustrate custom widths; the listed standard remains 50 mm × 200 m. Confirm colour, adhesion and removal on a physical sample before ordering.

Standard size50 mm × 200 m
Thickness50 / 60 μm
ColourBlue
Adhesion gradeCustomisable; A120 medium adhesion as reference
Recommended periodUp to 1 year
Outdoor useSuitable
Core inner diameter76 mm
Custom sizingCustom width and length supported
Logo printingNot supported
Minimum orderStandard sizes 1,000 m² / custom sizes 5,000 m²
Sample policyFree sample available; freight paid by customer
Production lead timeAbout 5 days
Private label / OEMSupported
StorageStore in a cool, dry place away from direct sunlight
Use validationA small-area trial is recommended before volume use

Performance

What this product is designed to do.

01

Custom adhesion levels

A120 medium adhesion is the listed reference grade; other adhesion levels can be customised. Match the grade to the actual surface and intended removal time through a sample trial.

02

50 or 60 μm thickness

Select 50 or 60 μm to suit handling and processing conditions. Apply to a clean, dry surface with even pressure and avoid trapping dust or air.

03

Custom width and length

Specify the coverage width, roll length and application method. Wide-sheet images illustrate custom formats; 50 mm × 200 m remains the reference size, not the only available size.

Suitable for

One material. Multiple surfaces.

01Stainless-steel surfaces
02Appliance panels
03Smooth metal surfaces
04Finished-product protection

Quote checklist

Get an accurate quote faster.

Share the details below so we can match the film, confirm production feasibility and prepare a useful quotation.

01Target material and surface finish
02Thickness, width and roll length
03Adhesion level, intended use and removal period
04Trial or order quantity
05Destination country, city and postal code / port
Samples available; courier paid by buyer.Production starts after specification confirmation.Small-area trial recommended before volume use.
